Desk Accessory Workspace Kit 1

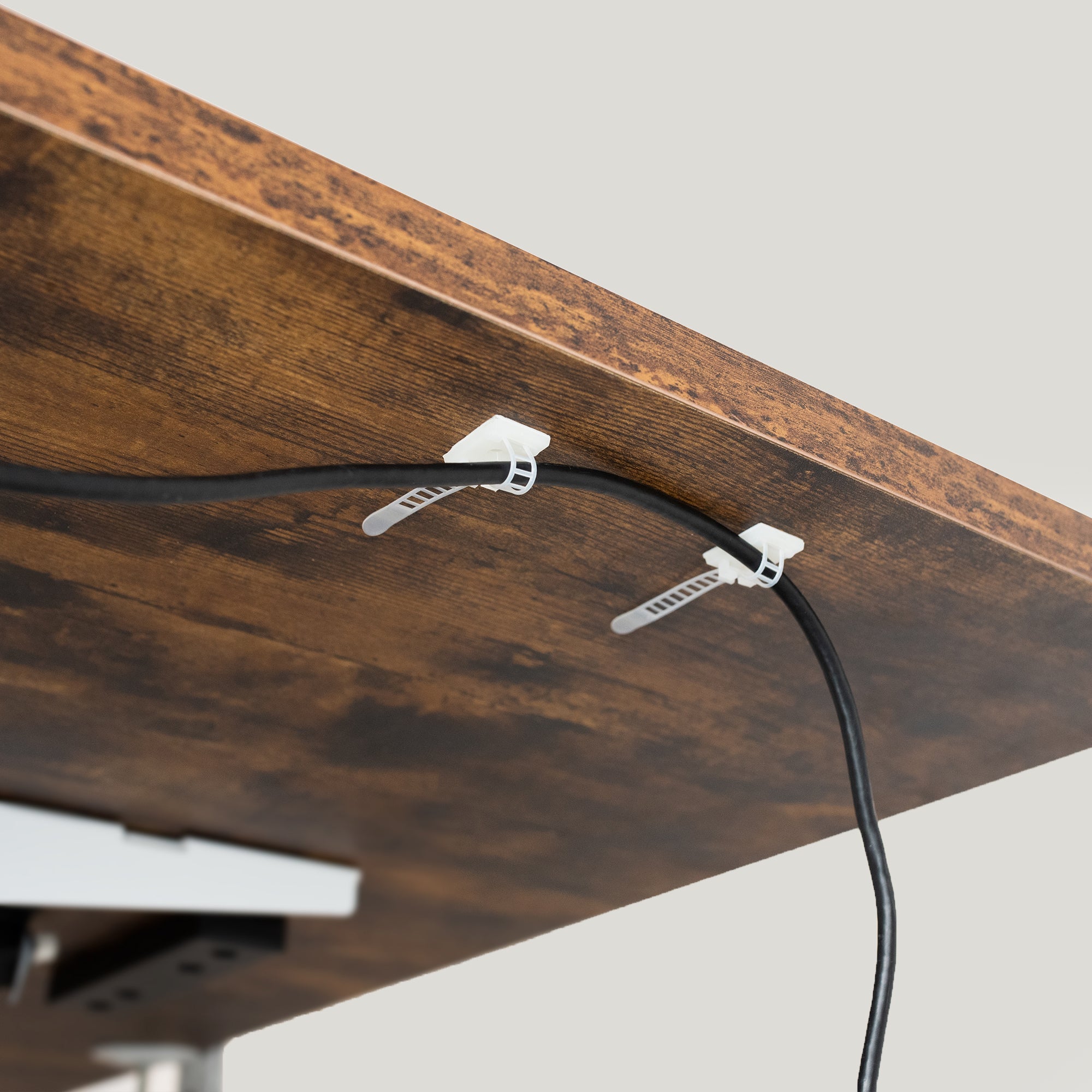

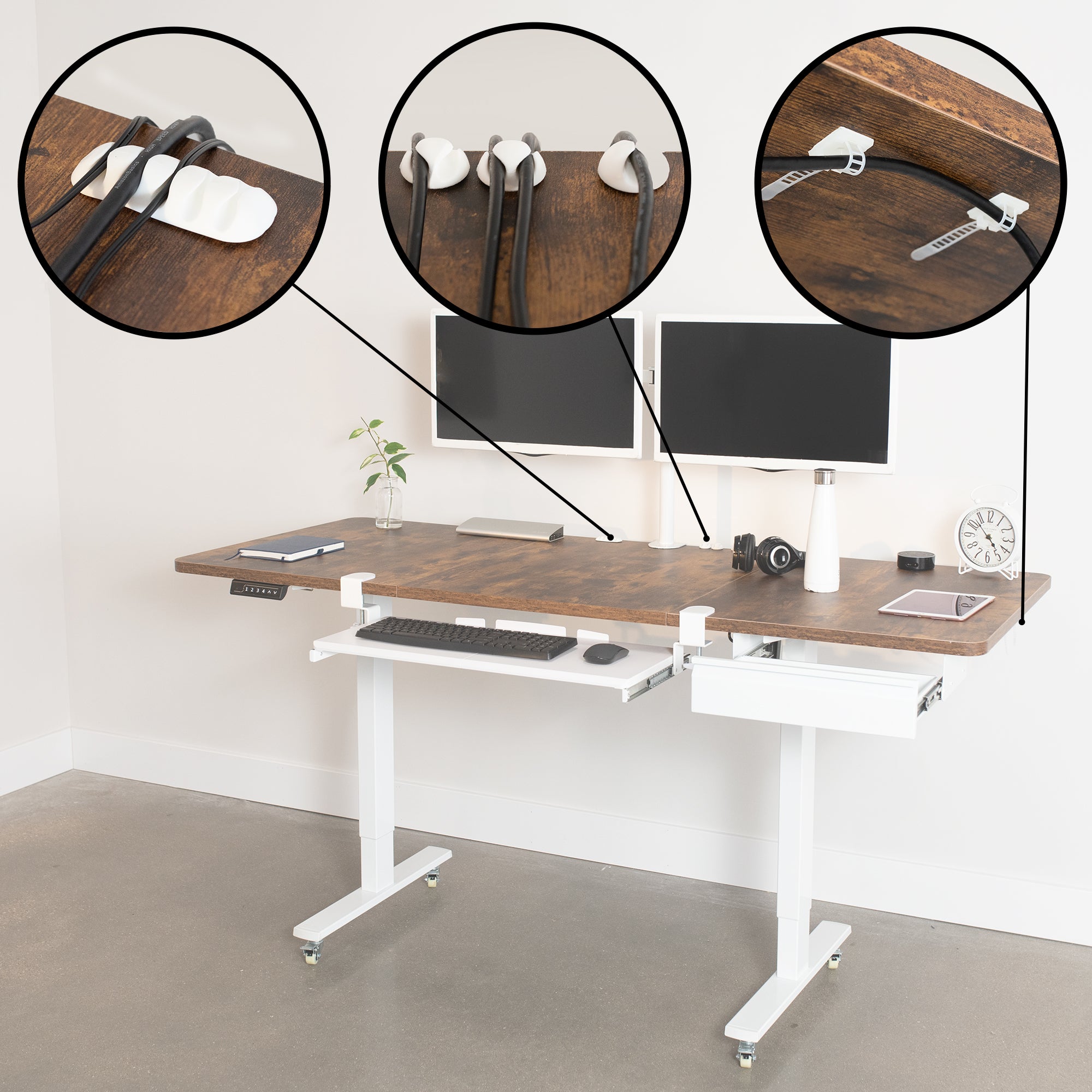

Enhance your workstation with extra storage space, ergonomic typing angles, mobility, and organization using the Desk Accessory Workspace Kit (DESK-ACK-01 Series) from VIVO! The versatile drawer is compatible with most types of desks measuring at least 3/4” in thickness and able to hold up to 16.8 lbs (drawer supports 11 lbs and weighs 5.8 lbs). The large keyboard tray clamps onto the edge of your desk (up to 1.25” thick) for comfortable types angles all day long! Four caster wheels fit most products using M8 threaded mounts and are safe to use on all floor types. The wheels also swivel to expertly maneuver tight corners, and the locking mechanism will make your setup stationary when desired. Cable ties let you route cords under your desk for a clean and organized setup that encourages concentration.

• --- MOUNT-KB05E ---
• Compatible Desk Thickness: 0.5” to 1.25”
• Weight Capacity: 11 lbs
• --- DESK-AC03A-B ---
• Minimum Desktop Thickness: 3/4”
• Weight Capacity: 11 lbs (Note: Product weighs 5.8 lbs when empty)
• --- Caster Wheels ---
• Compatible VIVO Standing Desk Frames: DESK-V100EB / DESK-V100EW (single motor), DESK-V100EBY / DESK-V100EWY (single motor), DESK-V122EB / DESK-V122EW (dual motor)
• Fits: M8 Threaded Mounts
• Weight Capacity: 180 lbs (45 lbs per caster)

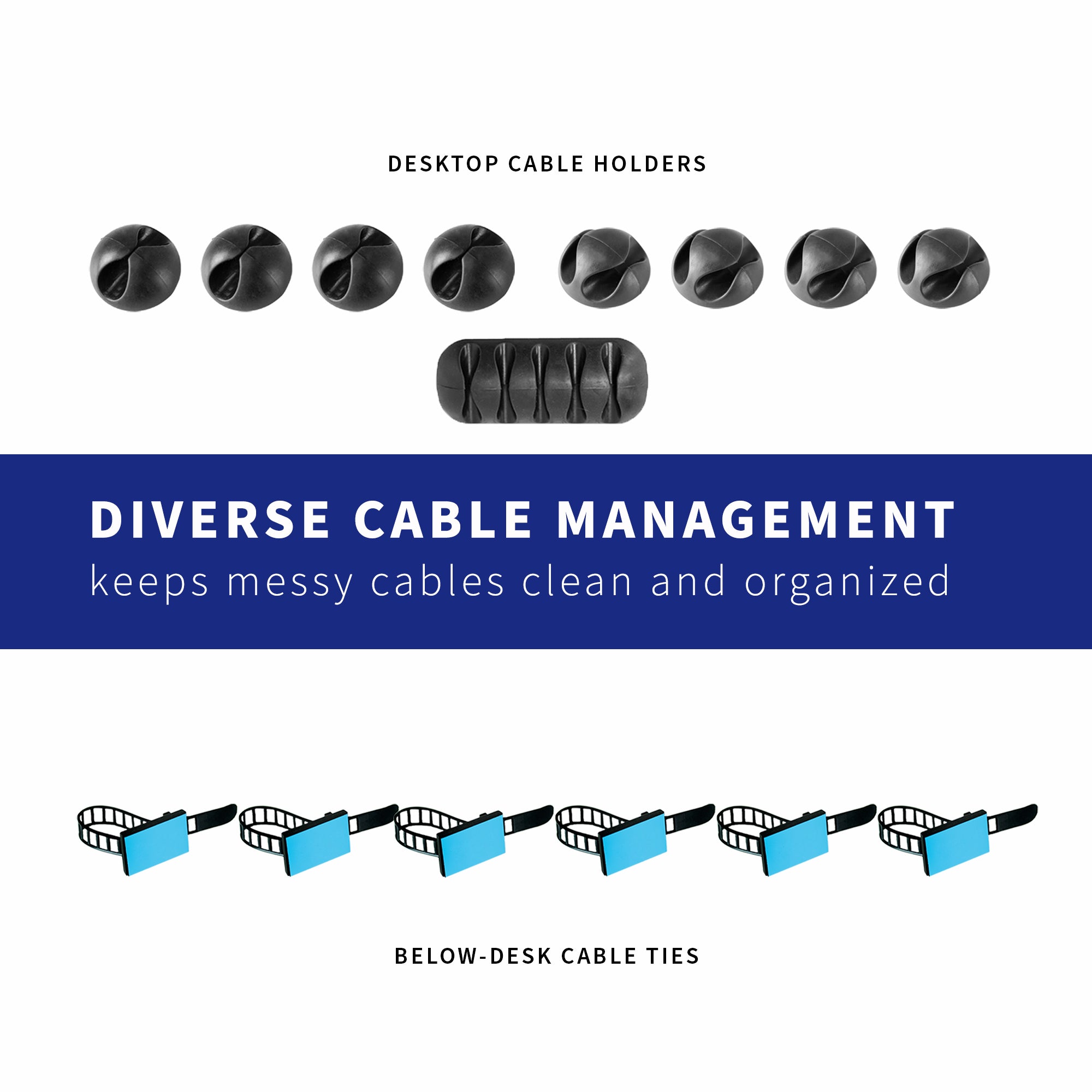

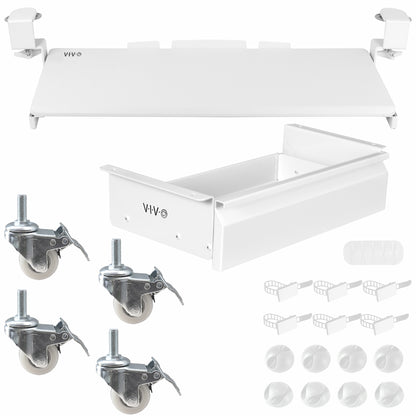

• Package Contents: Drawer (x1), Keyboard Tray (x1), Cable Management Set (x1), M8 Casters (x4)
• --- MOUNT-KB05E ---

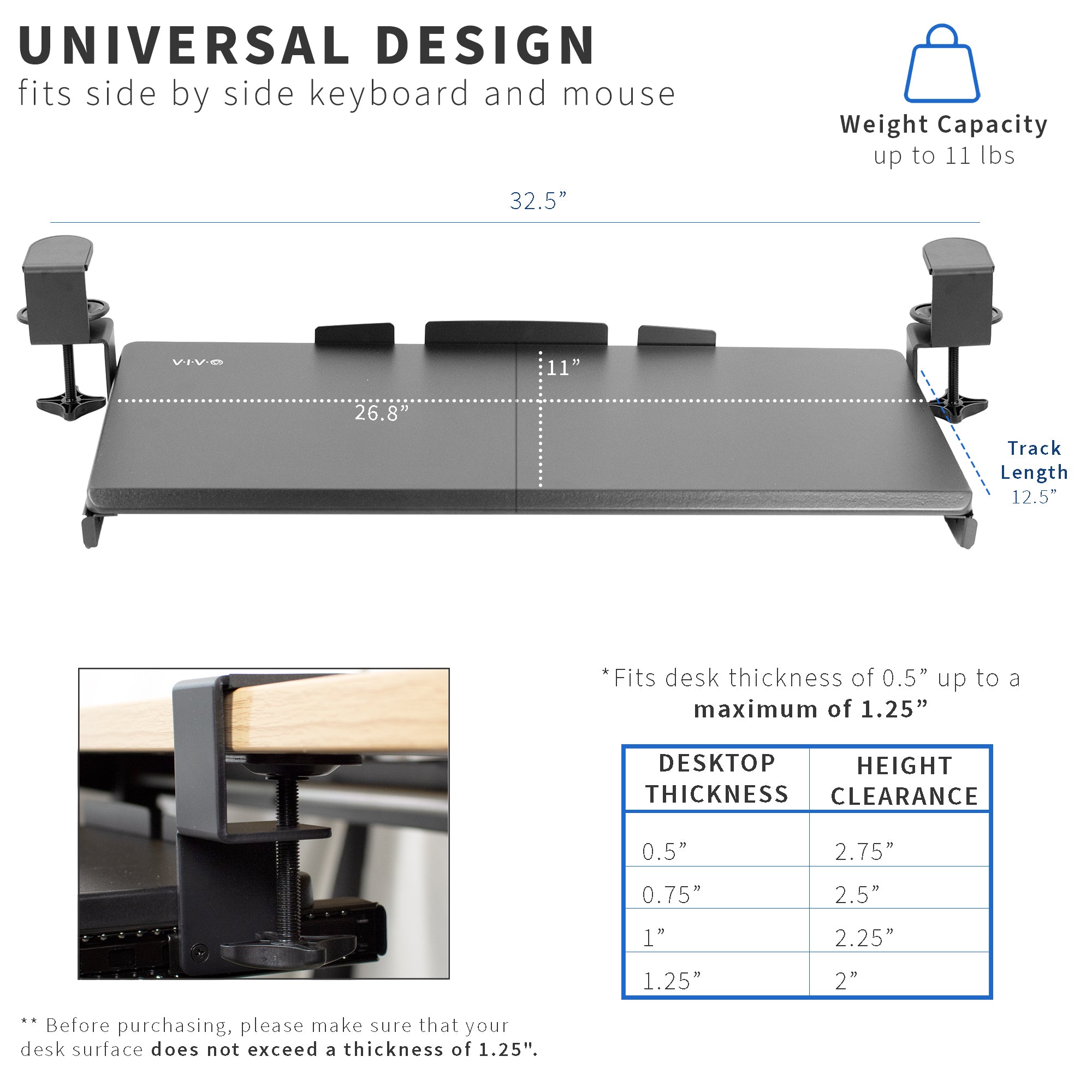

• Tray Dimensions: 26.8” (32.5” including clamps) x 11”
• Extension: Tray slides out a total of 8.5” from desk
• Orientation: Tray sits 1.5” to 2.75” below the desk surface
• --- DESK-AC03A-B ---
• Product Dimensions (Outside): 15.7”L (17.7” including side brackets) x 9”D x 4.2”H

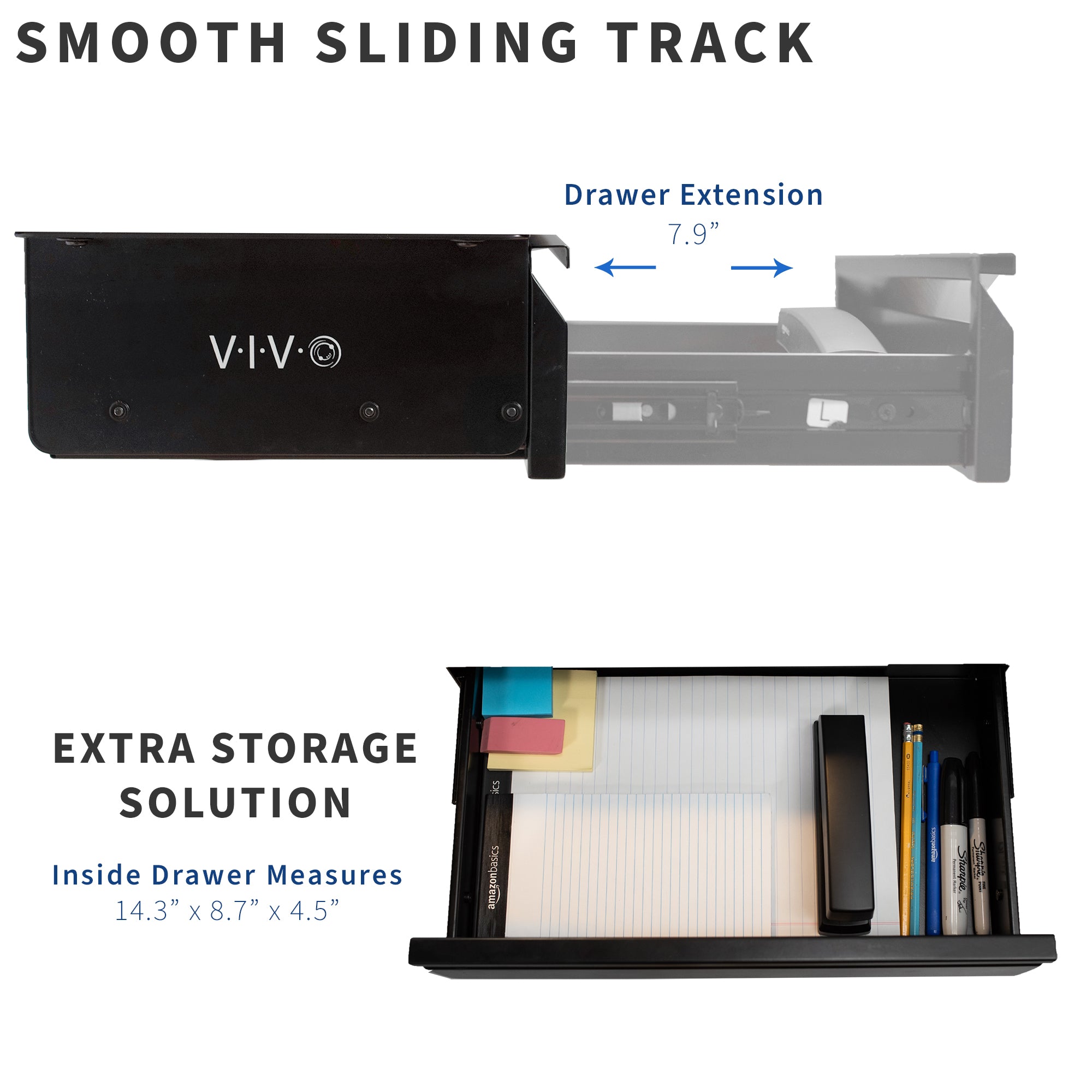

• Inside Drawer Dimensions: 14.3”L x 8.7”D x 4.5”H
• Distance Between Mounting Holes: 17” (horizontal), 6.3” (vertical)
• Orientation (Bracket Height): 3.7” below desk surface
• Drawer Extension: 7.9”
• --- Caster Wheels ---

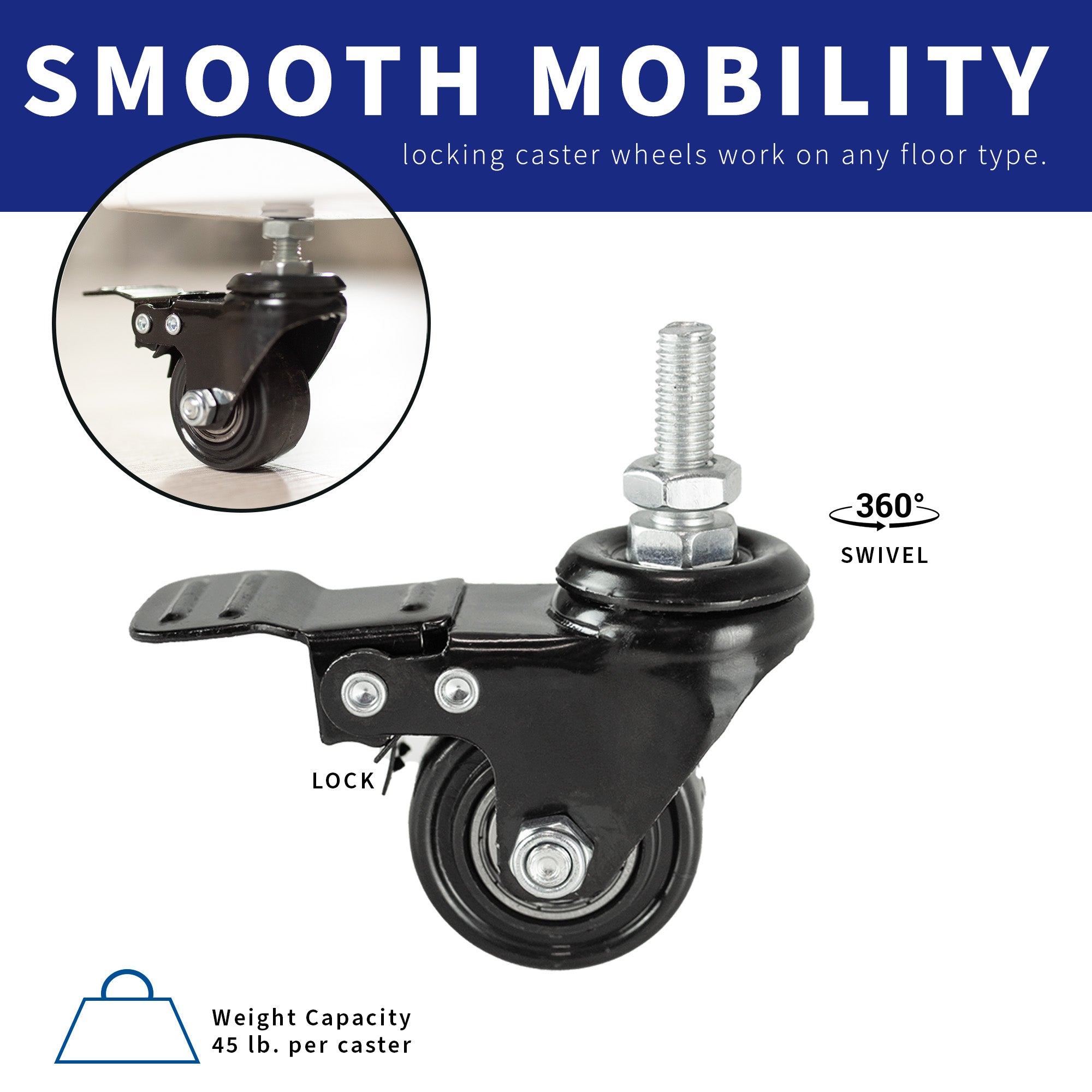

• Caster Size: 1.5"
• Display Type: M8 x 1.25mm x 15mm (metric)

• SPCS
