Easy to build and use
About Product

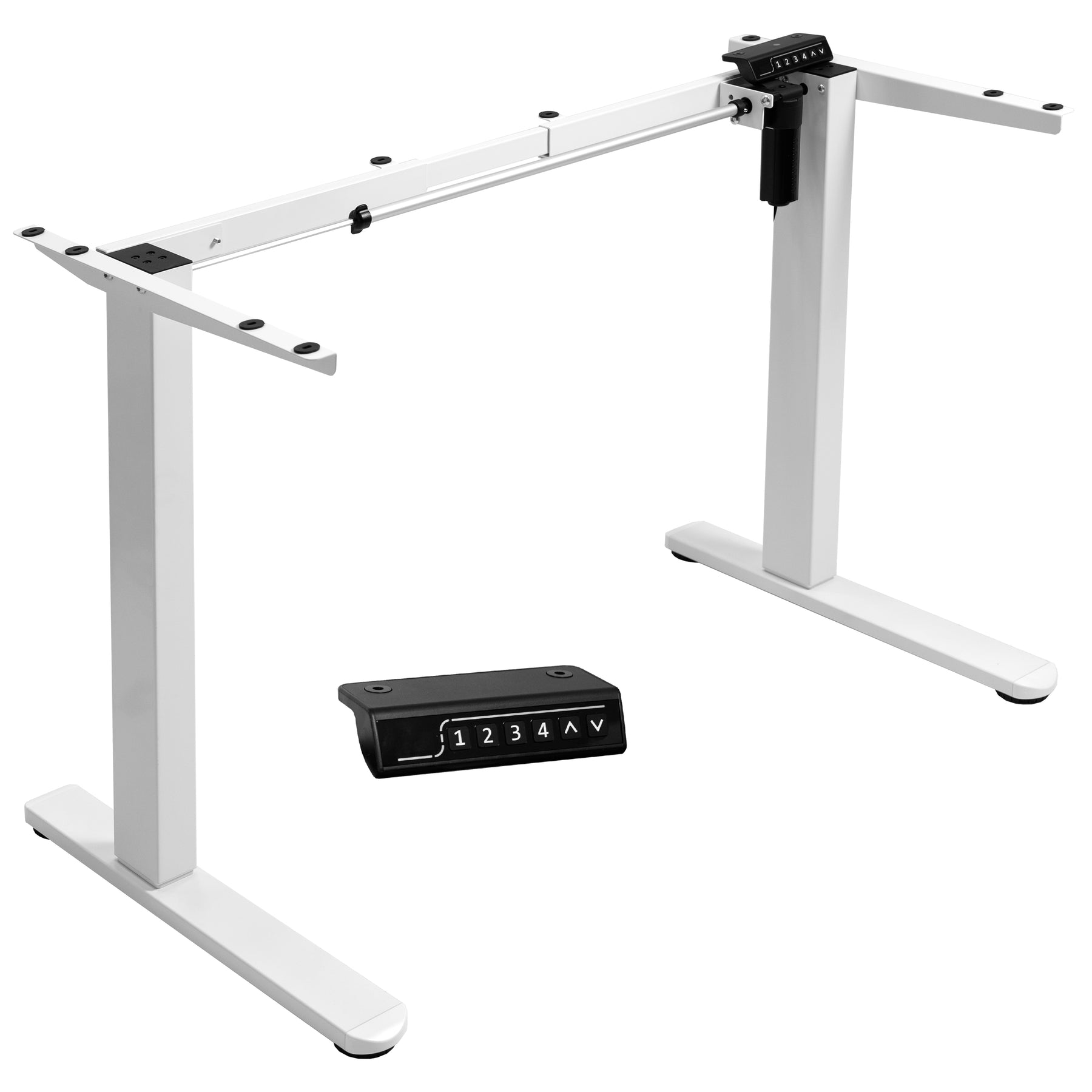

Create your own standing workstation and sit or stand on demand throughout the long work day with the Electric Single Motor Desk Frame with Rear-set Legs (DESK-100E-RB Series) from VIVO! Adjust your desk’s height in seconds with this sturdy frame featuring a single motor lift system for smooth transitions, a memory controller, adjustable feet, and solid leg support for desk surfaces weighing up to 176 lbs. Rear-set legs create an open front design that gives you more legroom and storage space in front of the columns. The thermal motor is protected against overheating to ensure this frame’s safety and longevity. We include all the hardware and instructions for assembly, so you can complete your very own ergonomic workstation with a solid frame that supports your equipment and lets you think on your feet!

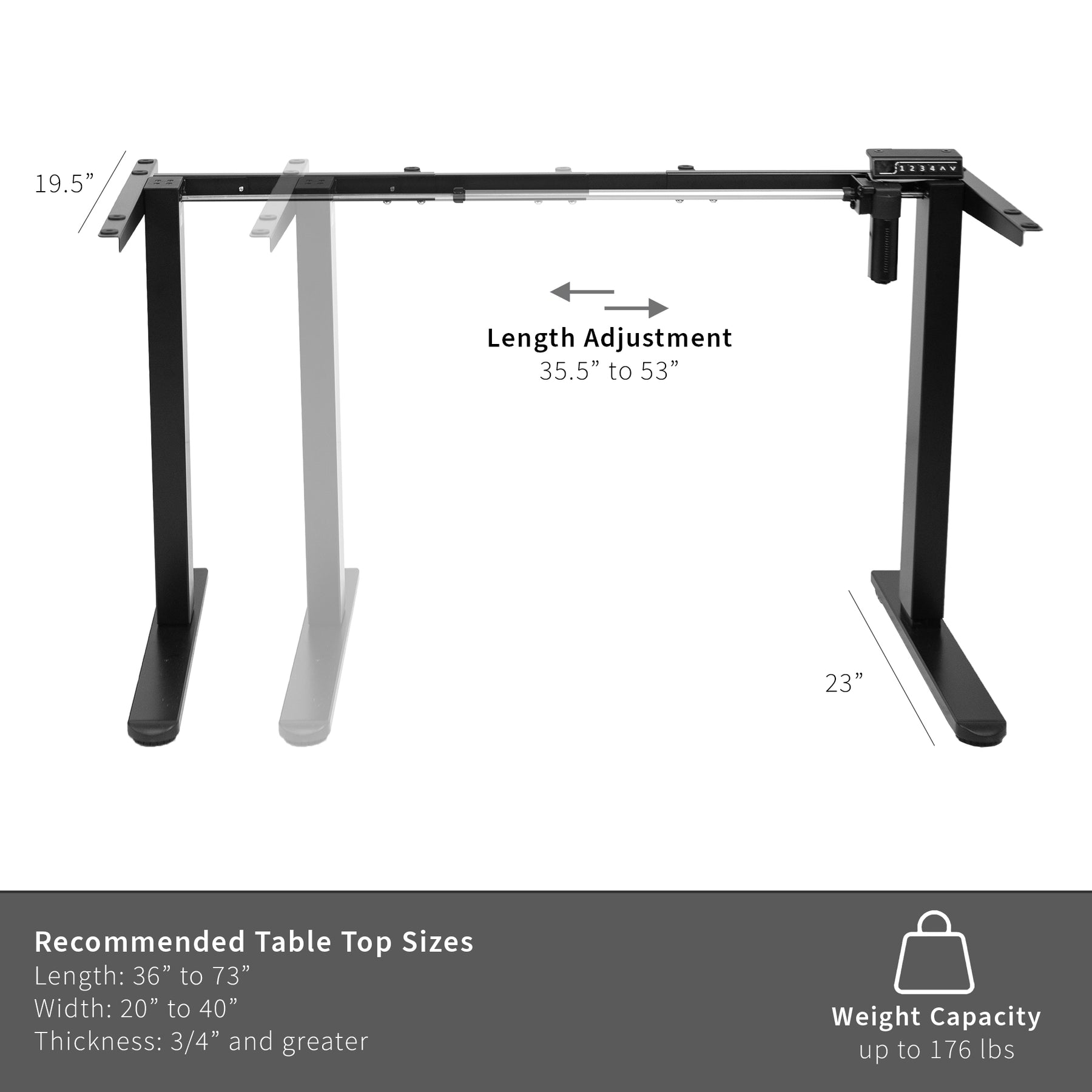

Compatibility
- Recommended Table Top Length: 36” to 73”
- Recommended Table Top Width: 20” to 40”
- Recommended Table Top Thickness: 0.75” and greater
- Weight Capacity: 176 lbs
Specifications
- Material: Steel
- Type: Electric (Single Motor)
- Controller Type: Push Button (4 Memory Settings)
- Height Adjustment Range: 27.6” to 45.8”
- Length Adjustment Range: 35.5” to 53”
- Foot Depth: 23” (each)
- Power Input: 110-240V, 50/60Hz
- Lift Speed: 1” (25mm) per second
Assembly Instructions
Rear Set Desk Legs
Increased Storage & Leg Room
Offset legs create an open-front design, providing more legroom and increased storage space underneath the desk, and also allows more room for clamping/mounting desk accessories to your table top, like keyboard trays, storage drawers, and more.
27.6" TO 45.8" CONTINUOUS HEIGHT RANGE
Easy Sit to Stand Transitions
Powerful single motor provides smooth electric height adjustments for easy sit to stand transitions. Cut down on your time in a sedentary sitting position and enjoy all the benefits of a standing workstation: increased energy, less stress and fatigue, greater productivity, and more.
4 PROGRAMMABLE HEIGHT SETTINGS
Memory Controller
The easy to use push button memory controller lets you program 4 height settings for easy sit to stand transitions throughout your day.
