About Product

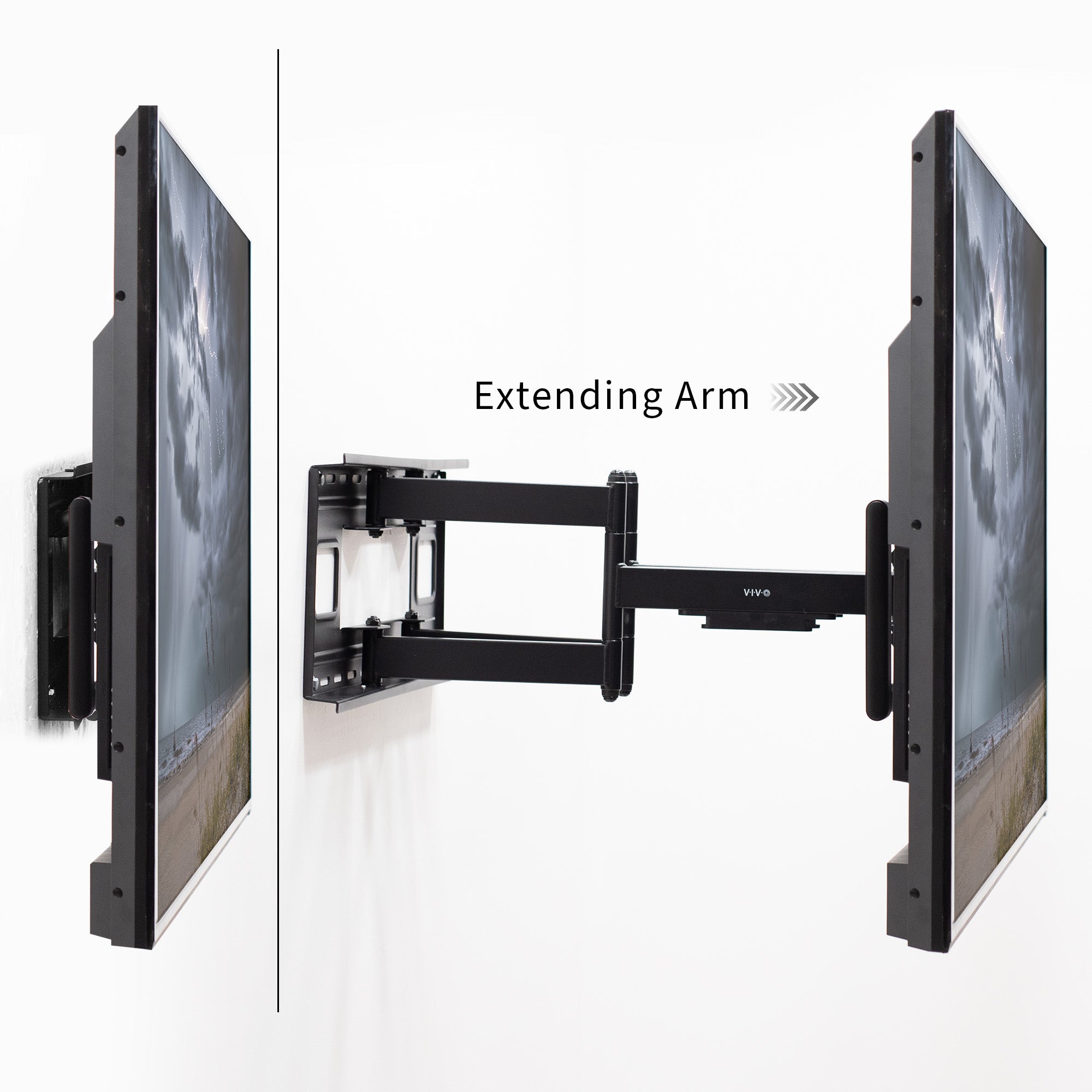

Enhance your viewing experience with the Full Motion Extra Large TV Wall Mount (MOUNT-VW120M) from VIVO! Designed for 60” to 120” screens, this full motion mount with swiveling design allows for more placement options within the room, giving everyone the best seat in the house. Free tilt design reduces screen glare with easy forward and backward adjustments for optimal viewing angles. Flexible support arm extends out into the room 27.7” and neatly folds close to the wall for a 3” low profile mount. Mount is designed to fit 60” to 120” curbed and flat screens with up to 264 lbs of support. We provide all the necessary hardware and step-by-step instructions to get your TV properly mounted. We recommend installation to be a two person job, so grab a friend and enjoy a new ergonomic screen display!
Compatibility
- Screen Sizes: 60” to 120” TV’s
- Screen Types: Flat and Curved

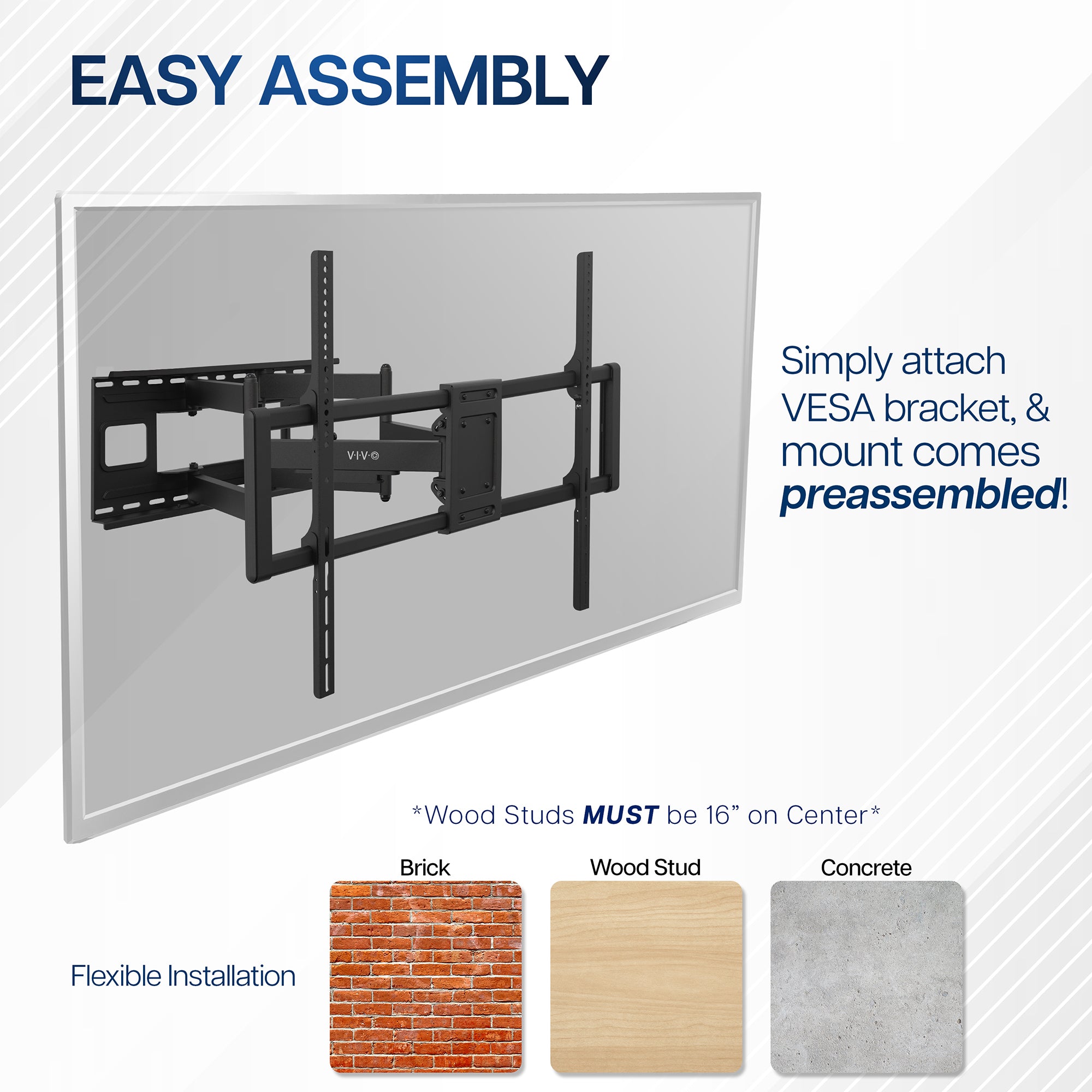

- Mounting Options: Dual Wood Studs, Brick/Concrete
- VESA Standard: 200x200mm, 300x200mm, 400x200mm, 300x300mm, 400x300mm, 400x400mm, 600x400mm, 800x400mm, 800x600mm, 900x600mm
- Weight Capacity: 264 lbs
Specifications
- Material: Steel
- Profile/Extension: 3” to 27.7”

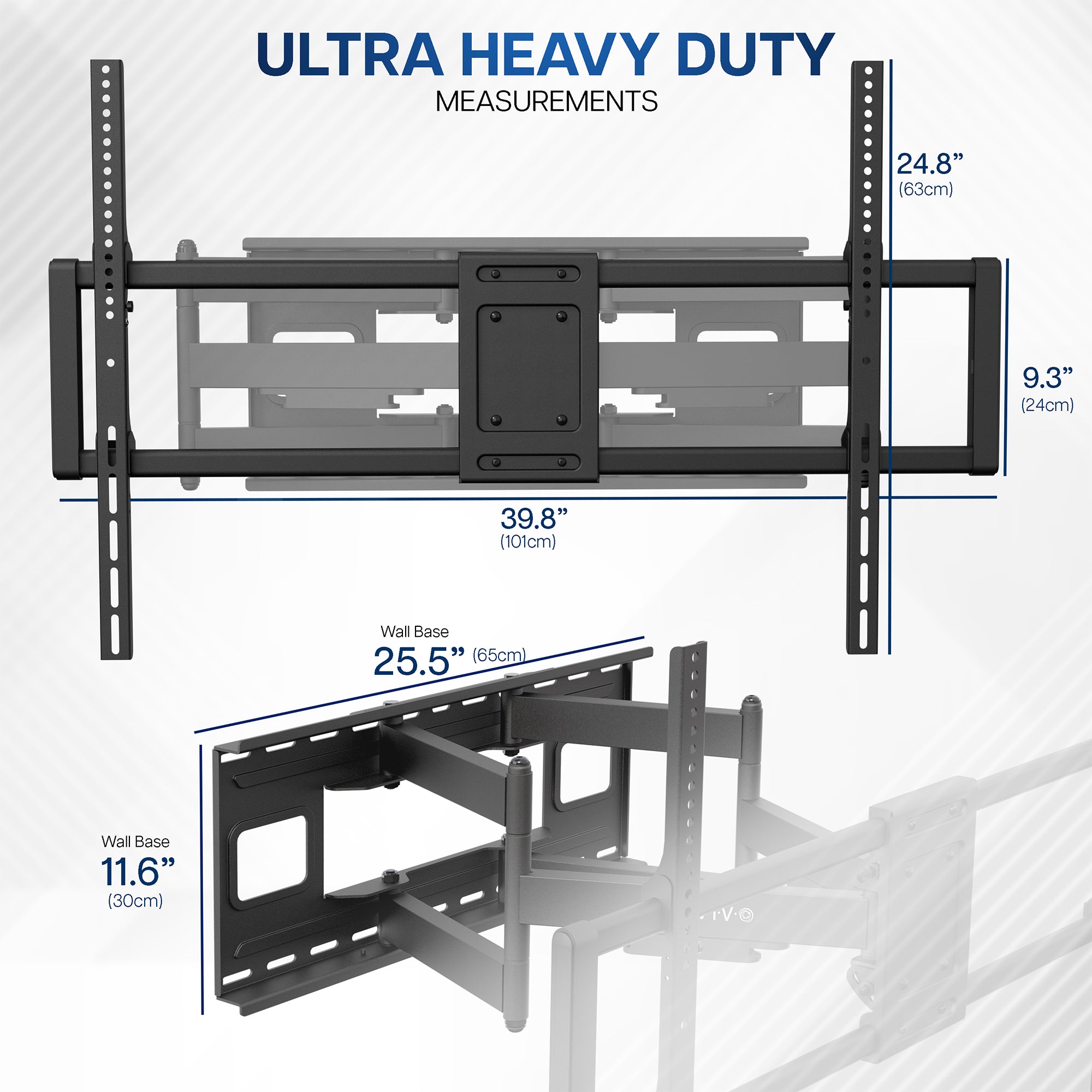

- Wall Base Dimensions: 25.5” x 11.6”
- Main Bracket Dimensions: 39.8” x 9.3”
- VESA Bracket Height: 24.8”
- Articulation: +5° to -15° tilt, +60 to -60° swivel, +5° to -5° screen leveling
